SUBMERSIBLE CABLES
Wallia Group

PVC INSULATED FLAT SUBMERSIBLECABLES


BRIMSON flat Cable are manufactured for critical space requirment, protection against indefinite immersible in water under specified conditions, protection against rain water under specified conditions, protection against rain water and protection against ingress of small solid foregin bodies.

BRIMSON'S Flat Cable are prouced from best quality electrolytic copper, annealed & bunched on automatic mnufacturing machines. The conductors are insluated with a special grade of PVC and outer sheath consists of a highly abrasion resistaant PVC compound. These cables are processed on sophisiticated twin extrusion line meets and withstands the demanding needs of submersible pump motor power supply.


CONDUCTOR
INSLUAION
SHEATH
CONDUCTOR
RESISANCE
@20OC (MAX)
OHMS/KM.
CURRENT CARRYING CAPACITY
@
40OC AMPS.
AREA (NOM.)
SQ. MM.
NO. & SIZE OF WIRES IN MM.
THICKN
-ESS
(NOM.) MM.
CORE DIA. (NOM.) MM.
THICKNESS
(NOM.)
MM.
SIZE
(W X T)
MM.
1.5
22/0.3
--
0.8
3.20
1.20
11.9 X 5.5
12.10
14
2.5
36/.03
---
0.9
3.85
1.20
13.85X6.15
7.41
18
4.0
56/.03
---
1.0
4.50
1.20
15.8X6.8
4.95
26
6.0
84/.03
---
1.0
5.00
1.20
17.3X7.3
3.30
31
10.0
140/.03
---
1.0
5.90
1.40
20.5X8.7
1.91
42
16.0
226/.03
126.04
1.0
6.95
1.40
23.65X9.75
1.21
57
25.0
354/.04
194/0.4
1.2
8.65
2.00
30X12.65
0.780
72
35.0
495/.03
396/0.4
1.4
12.10
2.20
40.7X16.5
0.3866
90
50.0
703/.03
396/0.4
1.4
12.10
2.20
40.7X16.5
0.386
115
70.0
360/.05
360/0.5
1.4
13.70
2.20
45.5x18.1
0.272
143
95.0
475/.05
485/0.4
1.6
15.80
2.40
52.2X20.6
0.206
165

Logo
INSTRUMENTATION CABLES
(Armoured & Unarmoured)

Wallia Group
BRIMSON Instrumentation cables ensure smooth Communication of low level signals from electronic transmitters to the control room. These cables effectivel cutdown any distortion or cross talk. Thesuperior Aluminium Mylar industries like Petrochemivals, Steel, Aviation, fire Alarm Systems, Refineries, Pharmaceuticals, Thermal Power Projects, chemical Plants, Transmission systems, Computer Controlle Electrical & electronic Equipments etc.

Signal cables are imperative when you want to keep the signal to noice ratio and the capacitance to the minium in persence of stay magnetic fields. they are used in sensitive areaswhere accurate data inputsare necessary viz. eletronic Industries and Nuclear Power Plants.

RTD (Remote Temperature Detection) cables carry temperature readings from remote or inaccessible areas to the contol room.

The growing sophiticated of the electronic idustry continues to create a need for specially designed cables for use with computer-controlled electrical and electronic equipment. To satisfy requirments for impedance matching, lower bit error rates, lower crosstalk, longer transmission distances and high signal purity, we are manufacturing an expanding spectrum of instrumentation, daa and control cables in full purity, we are manufacturing an expanding spectrum of instrumentation, data and controlcables in full range of sizes, insulatings of different types, shields types for special installations. We can also armour these cables for mechanical protection.

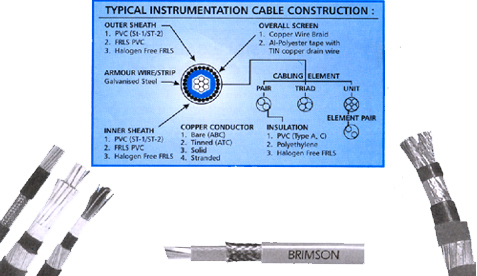

Typical Instrumentation Cable Construction
